Webhook - Offramp

This section explains the steps to configure callback URLs for receiving events about completed offramp transactions.

Configuring Webhook

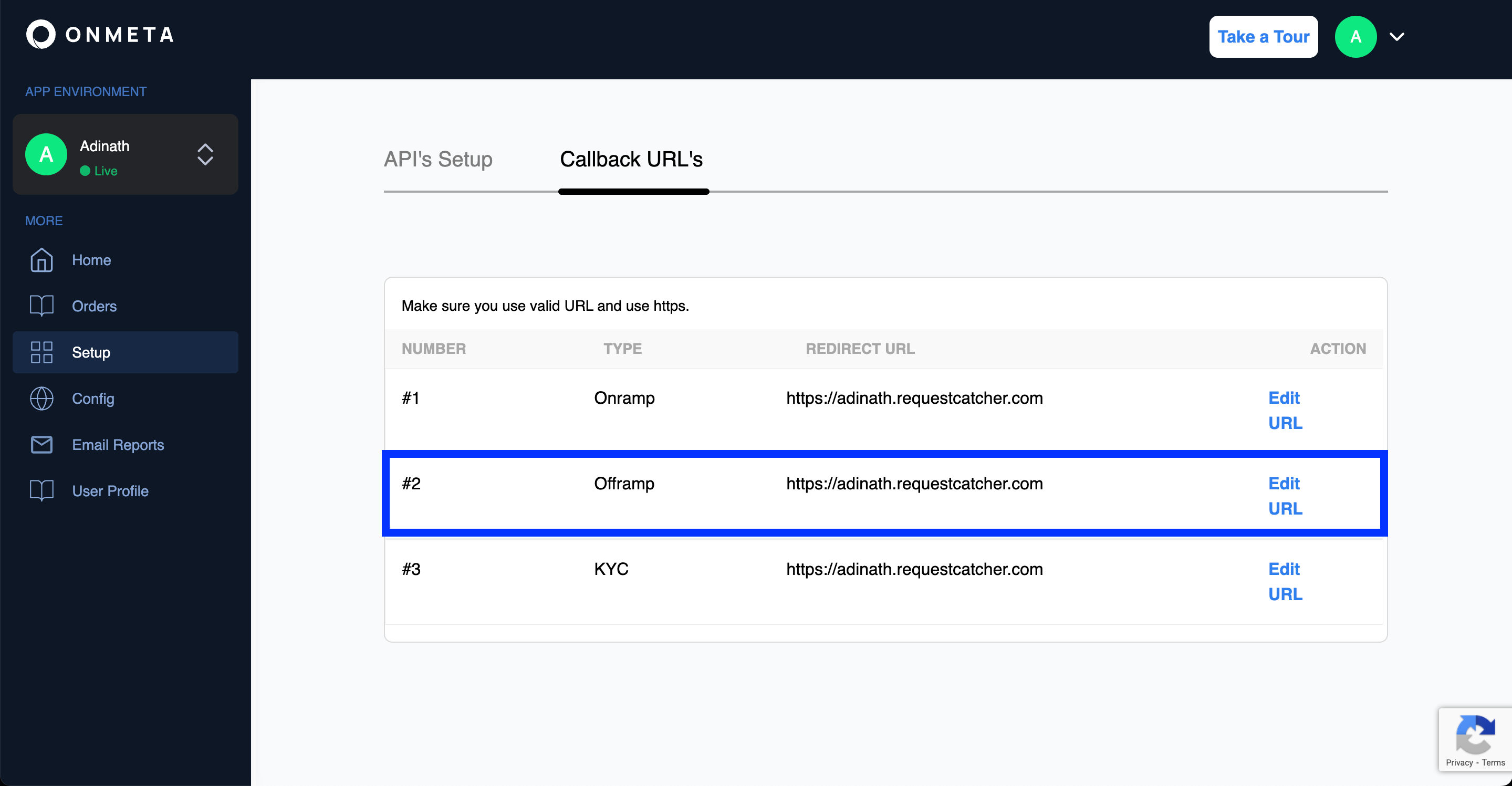

Webhooks are configured in the merchant dashboard.

Inside the Setup section, webhooks can be added and modified under the Callback URL's section.

Generating HMAC

Signature is computed using Hash-based message authentication code (HMAC) using a secret key. The secret key is the API Secret present in your merchant dashboard.

The example implementation in Node.js is shown below:

let hmac = crypto.createHmac('sha256', apiSecret);
hmac.update(JSON.stringify(postBody));
let hash = hmac.digest('hex');
assert(hash == headers["X-Onmeta-Signature"])

Completed Order

POST{{configured_webhook_url}}

This callback will be triggered when the crypto coins are deposited to the given receiver address. It will use the configured webhook URL to send order completed details in the POST body.

info

Event Type: offramp

Make sure you have firewall rules configured to allow receiving the webhook body, otherwise your firewall might block our webhook requests.

Headers

Name	Type	Required	Description
Accept	string	Yes	application/json
Content-Type	string	Yes	application/json
X-Onmeta-Signature	string	Yes	HMAC signature for webhook verification

Request Body Parameters

Parameter	Type	Required	Description
fiat	number	Yes	Fiat amount
senderWalletAddress	string	Yes	Wallet address sending the crypto
sellTokenSymbol	string	Yes	Symbol of the sold token
sellTokenAddress	string	Yes	Contract address of the sold token
orderId	string	Yes	Unique order identifier
status	string	Yes	Order status
currency	string	Yes	Fiat currency code
chainId	number	Yes	Blockchain network chain ID
customer	object	Yes	Customer information object
created_at	string	Yes	Order creation timestamp
updated_at	string	Yes	Order update timestamp
tenantId	string	Yes	Tenant identifier
transactionId	string	Yes	Transaction identifier
tokensDeducted	number	Yes	Amount of tokens deducted
tds	number	Yes	TDS amount
eventType	string	Yes	Event type identifier (offramp)
metaData	object	No	Additional metadata

Code Examples

cURL

curl --location -g --request POST '{{configured_webhook_url}}' \
--header 'Accept: application/json' \
--header 'Content-Type: application/json' \
--header 'X-Onmeta-Signature: string' \
--data-raw '{
  "fiat": 100,
  "senderWalletAddress": "0x12E217bf293b242r1r1414fcw42g1",
  "sellTokenSymbol": "MATIC",
  "sellTokenAddress": "0xeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee",
  "orderId": "63c51a9e598f1f0fabbe8fbc",
  "status": "completed",
  "currency": "inr",
  "source": "",
  "chainId": 80001,
  "customer": {
    "id": "63c514c142e2ae343ed283ed",
    "name": "",
    "email": "test@onmeta.com",
    "phone": {
      "countrycode": "",
      "number": ""
    },
    "created_at": "2023-01-16T12:00:00.000Z"
  },
  "created_at": "2023-01-16T12:00:00.000Z",
  "updated_at": "2023-01-16T12:30:00.000Z",
  "tenantId": "122345677",
  "transactionId": "S11FWKNM931",
  "tokensDeducted": 1.22,
  "tds": 1,
  "eventType": "offramp"
}'

Node.js

const crypto = require('crypto');

// Verify webhook signature
function verifyWebhookSignature(postBody, signature, apiSecret) {
  let hmac = crypto.createHmac('sha256', apiSecret);
  hmac.update(JSON.stringify(postBody));
  let hash = hmac.digest('hex');
  return hash === signature;
}

// Example webhook handler
app.post('/webhook', (req, res) => {
  const signature = req.headers['x-onmeta-signature'];
  const isValid = verifyWebhookSignature(req.body, signature, apiSecret);

  if (!isValid) {
    return res.status(401).json({ error: 'Invalid signature' });
  }

  // Process webhook
  console.log('Webhook received:', req.body);
  res.status(200).json({ success: true });
});

Python

import hmac
import hashlib
import json

def verify_webhook_signature(post_body, signature, api_secret):
    message = json.dumps(post_body, separators=(',', ':'))
    hash_object = hmac.new(
        api_secret.encode('utf-8'),
        message.encode('utf-8'),
        hashlib.sha256
    )
    computed_hash = hash_object.hexdigest()
    return computed_hash == signature

# Example webhook handler
@app.route('/webhook', methods=['POST'])
def webhook():
    signature = request.headers.get('X-Onmeta-Signature')
    is_valid = verify_webhook_signature(request.json, signature, api_secret)

    if not is_valid:
        return {'error': 'Invalid signature'}, 401

    # Process webhook
    print('Webhook received:', request.json)
    return {'success': True}, 200

Response Sample

{
  "fiat": 100,
  "senderWalletAddress": "0x12E217bf293b242r1r1414fcw42g1",
  "sellTokenSymbol": "MATIC",
  "sellTokenAddress": "0xeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee",
  "orderId": "63c51a9e598f1f0fabbe8fbc",
  "status": "completed",
  "currency": "inr",
  "source": "",
  "chainId": 80001,
  "customer": {
    "id": "63c514c142e2ae343ed283ed",
    "name": "",
    "email": "test@onmeta.com",
    "phone": {
      "countrycode": "",
      "number": ""
    },
    "created_at": "2023-01-16T12:00:00.000Z"
  },
  "created_at": "2023-01-16T12:00:00.000Z",
  "updated_at": "2023-01-16T12:30:00.000Z",
  "tenantId": "122345677",
  "transactionId": "S11FWKNM931",
  "tokensDeducted": 1.22,
  "tds": 1,
  "eventType": "offramp"
}

Offramp Webhook Events

Onmeta offramp flow allows you to receive real-time notifications through webhook events when certain events occur.

#	Event Name	Description
1	pending	This event is triggered when a user has initialised the order but crypto transfer is pending.
2	orderReceived	This event is triggered when a user transfers crypto and the tokens are received by Onmeta.
3	InProgress(optional)	This event is triggered when the order is in-progress on the blockchain while swapping tokens (in case of non-base tokens).
4	CryptoReceived	When we successfully validate the crypto received from user we send this event.
5	PayoutSuccess	This event is triggered when the fiat amount is successfully deposited in the users bank account.
6	refunded	This event is triggered when refund is successfully completed in case of amount/token mismatch.

Example Webhook Request

{
  "fiat": 100,
  "senderWalletAddress": "0xf12dcsdadefed2eeb4d0475de270447a92a481635caf4a",
  "sellTokenSymbol": "MATIC",
  "sellTokenAddress": "0xeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeee",
  "chainId": 137,
  "orderId": "641c311afdsaddfwcd2768aa5e",
  "status": "PayoutSuccess",
  "currency": "inr",
  "created_at": "2023-03-23T10:59:38.494Z",
  "updated_at": "0001-01-01T00:00:00Z",
  "source": "",
  "customer": {
    "id": "63b52390dsaddefsfefwfw25d377ae",
    "email": "documentation@onmeta.in",
    "phone": {},
    "created_at": "2023-01-04T06:58:24.968Z"
  },
  "tenantId": "",
  "transactionId": "TRAREFXXXXXXXXX",
  "tokensDeducted": 1051823.63,
  "tds": 1,
  "eventType": "offramp",
  "metaData": {
    "submeta1": "metadata"
  }
}
